Harbor Crane Body with Venturo Electric ET12KX Crane – Ready For Work!
This is a Harbor Crane Body with a Raised Gas Bottle Compartment and a top mounted Ventura Electric Crane on the right side of the body. This is a vertical series body and has a vertical door in the rear and the horizontal door over the wheel. Notice the bottle brackets and rings and the gas hose reel inside the vented gas compartment. The rear facing surface of the raised compartment is protected from damage with tread plate.
Mounted on the rear right corner is a Venturo ET12KX crane with crane rest. This is a 12,000 ft*lbs crane with 3,500 lb lifting capacity. Electric winch, elevation, rotation and extension.
CRANE SPECIFICATIONS: 3,500 lbs lifting capacity 12,000 ft*lbs crane moment rating Electric winch, elevation, rotation, and extension 7'-15' boom (4' powered, 4' manual extension) 17 ft/min (unloaded) and 13 ft/min (1725 lbs) single line winch speed Electrical requirements: 12 VDC Continuous power rotation with live swivel Overload protection system Anti-Two-Block protection system 25' corded remote standard 65' of 1/4 " aircraft-quality wirerope Meets OSHA 1910.180 and ANSI B30.5 standards Optional Equipment: Outriggers and Mounting Pedestals

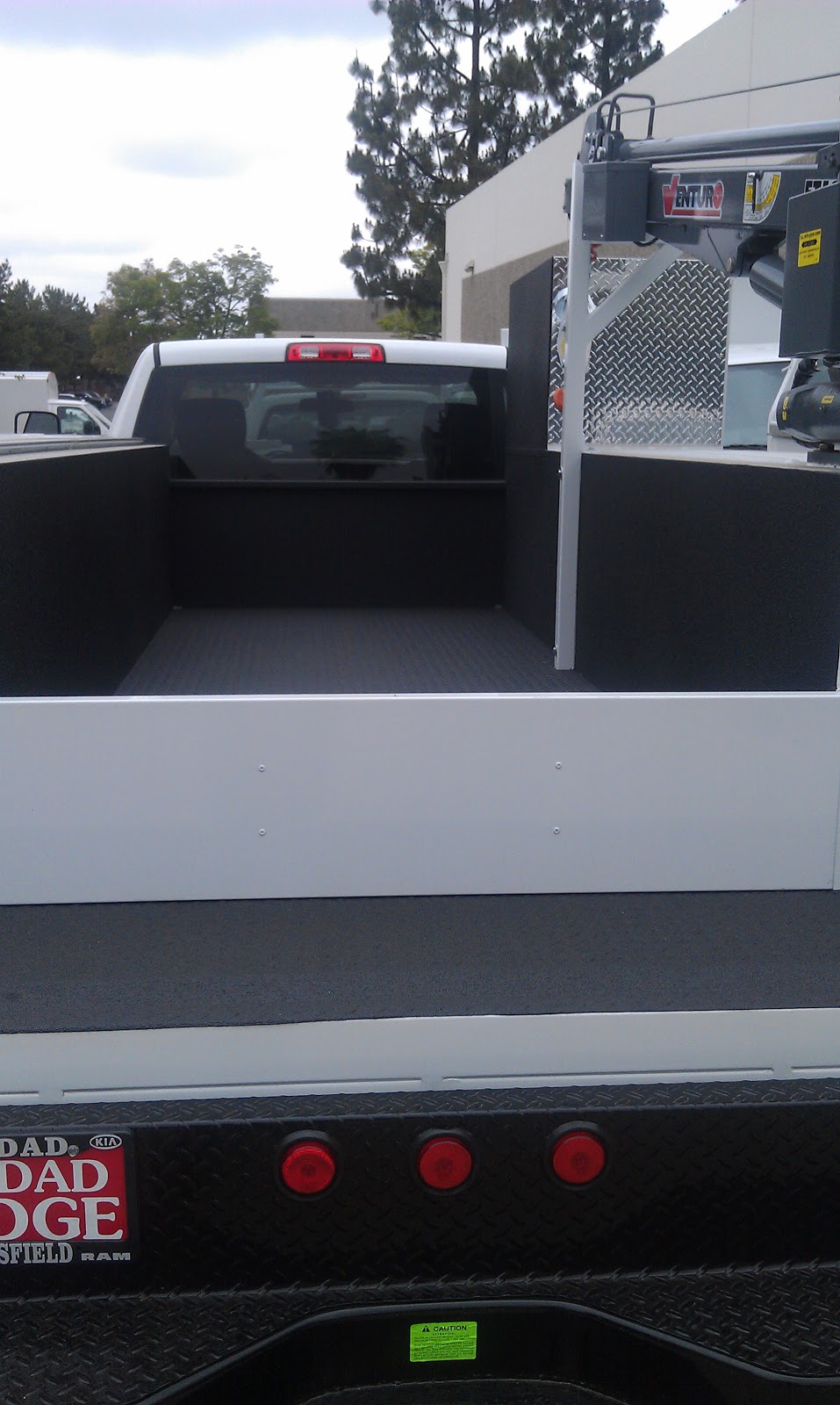

There is a Work Platform extension on this body . It is available on any Service Body and provides a great work area for work on the job site. Available with or without a traverse compartment with doors on the sides. This is a relatively inexpensive way to add some great workspace for those who use their truck in the field. The V-Groove makes it easy to keep pipe from rolling and accomodates various sizes of pipe or tubing.The traditional fold-down rear tailgate is replaced by a drop-in gate.
Notice the Rear Grab Handles to help with the step into the rear of the body, the bumper has a treadplate step area and a receiver for the tow hitch. The inside of body is coated with spray on liner.
All in all, this is an awesome selection of features and benefits that could serve you well. Call Harbor at 1-800-433-9452 and visit our website at www.htbi.net.
